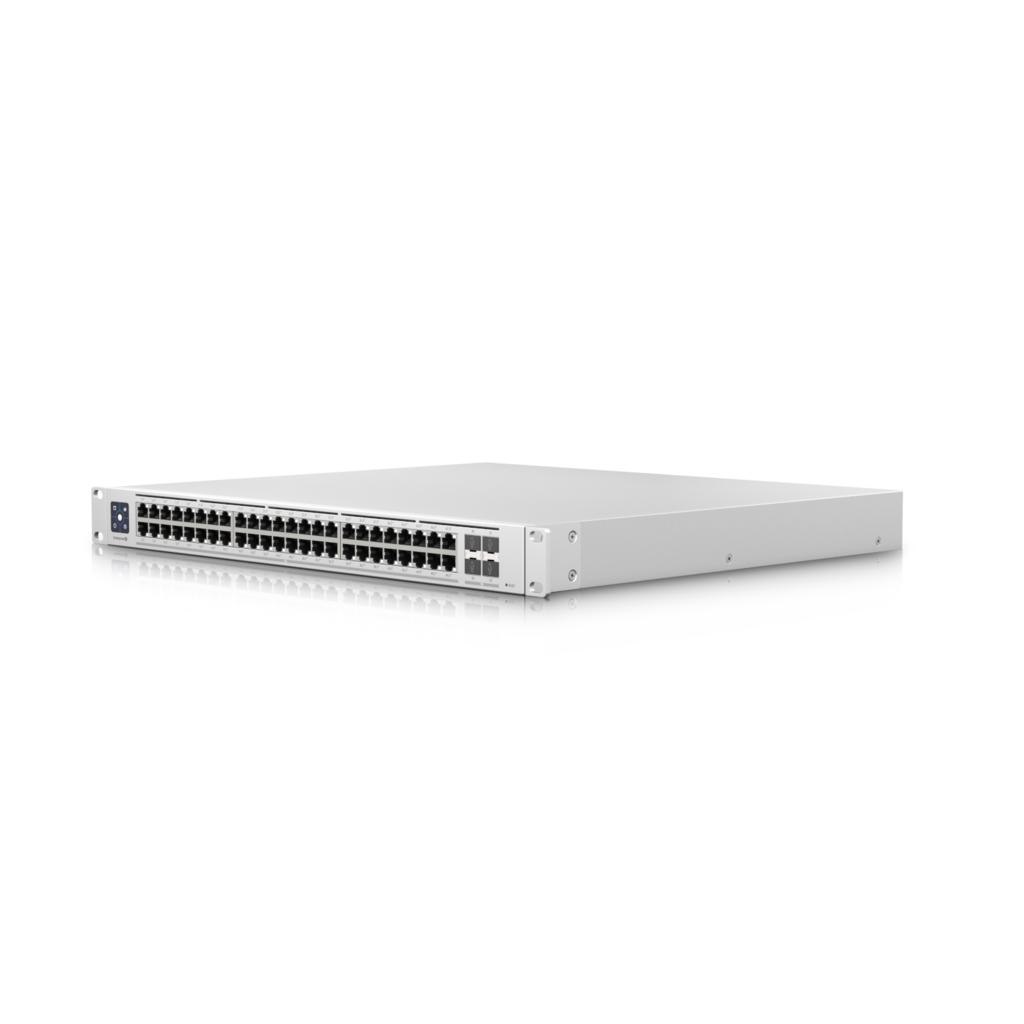

The Switch Enterprise 48 PoE (USW Enterprise 48 PoE) is a fully managed switch with (48) 2.5GbE, 802.3at PoE+ RJ45 ports, (4) 10G SFP+ ports, and a 720W total PoE supply. Along with its Layer 3 functionality, this switch offers an extensive suite of Layer 2 switching protocols, including port-specific operation modes (switching, mirroring, or aggregate).The USW Enterprise 48 PoE also features a 1.3' LCM color touchscreen that concisely displays key system and connection insights.
Features:
(1) 1.3' LCM color touchscreen with AR switch management
(48) 2.5GbE, 802.3at PoE+ RJ45 ports
(4) 10G SFP+ ports
(1) USP RPS DC input
720W total PoE supply
Dimensions 442 x 44 x 400 mm (17.4 x 1.7 x 15.7')
Weight Without Mount: 6.2 kg (13.67 lb)
With Mount: 6.3 kg (13.89 lb)
Switching Capacity 320 Gbps
Forwarding Rate 238.095 Mpps
Max Power Consumption (Excluding PoE Output) 150W
Power Method (1) Universal AC input, 100-240VAC, 10A Max, 50/60 Hz
(1) USP-RPS DC input, 52VDC, 13.84A; 11.5VDC, 13A
Power Supply AC/DC, Internal, 100-240V, 10A Max.
Management Interface Ethernet In-Band
Networking Interfaces (48) 100MbE/1GbE/2.5GbE RJ45 port
SFP+ Interfaces (4) 1/10G SFP+ ports
PoE Interfaces (48) PoE+ IEEE 802.3af/at (Pins 1, 2+; 3, 6-)
Total Available PoE 720W
Max. PoE+ Wattage per Port by PSE 34.2W
Voltage Range 802.3af Mode 44 to 57V
Services SMB Layer 3 PoE Gigabit Ethernet Switch
ESD/EMP Protection Air: ± 16 kV, Contact: ± 12 kV
