- General Information
- Manufacturer
- In Win Development, Inc
- Manufacturer Website Address
- http://www.in-win.com.tw/Corporate/zh/
- Brand Name
- In Win
- Product Line
- Saturn
- Packaged Quantity
- 3
- Product Type
- Cooling Fan
High Airflow, Air Pressure with Intelligent Cooling | Modular Connector Design
Our patented modular connector design simplifies cable management by making it quick, easy and clean with limited cable routing.
Gorgeous ARGB Lighting Effect
The ARGB feature complements other ARGB components and can be synced together with motherboard software via 3-pin, 5V header.
Witness the Stripe-Hype!
The rigid stripes found along the transparent frame of the ASN140 showcases the beauty of their architecture and provides a unique perspective when the lights bleed through.
Shockproof Rubber Stands
Operating vibrations and noises are reduced to an absolute minimum through the shockproof rubber stands.
ARGB One-Click Controller PLUS | (ARGB + Fan Controller)
Thanks to the provided ARGB One-Click Controller PLUS, you can now sync even more ARGB enabled items. Also, you can connect the fan's power to the controller too.
Adjust the LEDs by pressing the button or connect the controller to the chassis's reset button via the 2-pin connector to adjust without opening the PC.
- Warranty
- Limited Warranty
- 2 Year
- Fan Information
- Number of Fans
- 3
- Fan Bearing Type
- Long Life Sleeve Bearing
- Fan Speed (Min)
- 500 rpm
- Fan Speed (Max)
- 1400 rpm
- Maximum Airflow
- 159.66m³/h
- Noise Levels (A-Weighted)
- 36 dB(A)
- LED Color
- ARGB
- Maximum Air Pressure
- 1.73mmH2O
- Interfaces/Ports
- Connectors
- Connector (Fan to Fan): 6-pin Modular
- Connector to M/B: 4 Pin (PWM, 12V), 3 Pin (ARGB, 5V)
- Power Description
- Rated Current
- 270 mA
- Physical Characteristics
- Product Color
- Black/White
- Product Material
- Polycarbonate
- Polybutylene Terephthalate (PBT)
- Material Details
Shockproof Rubber Stands
- Maximum Fan Diameter
- 140 mm
- Fan Height
- 140 mm
- Fan Width
- 140 mm
- Fan Depth
- 25 mm
- Miscellaneous
- Package Contents

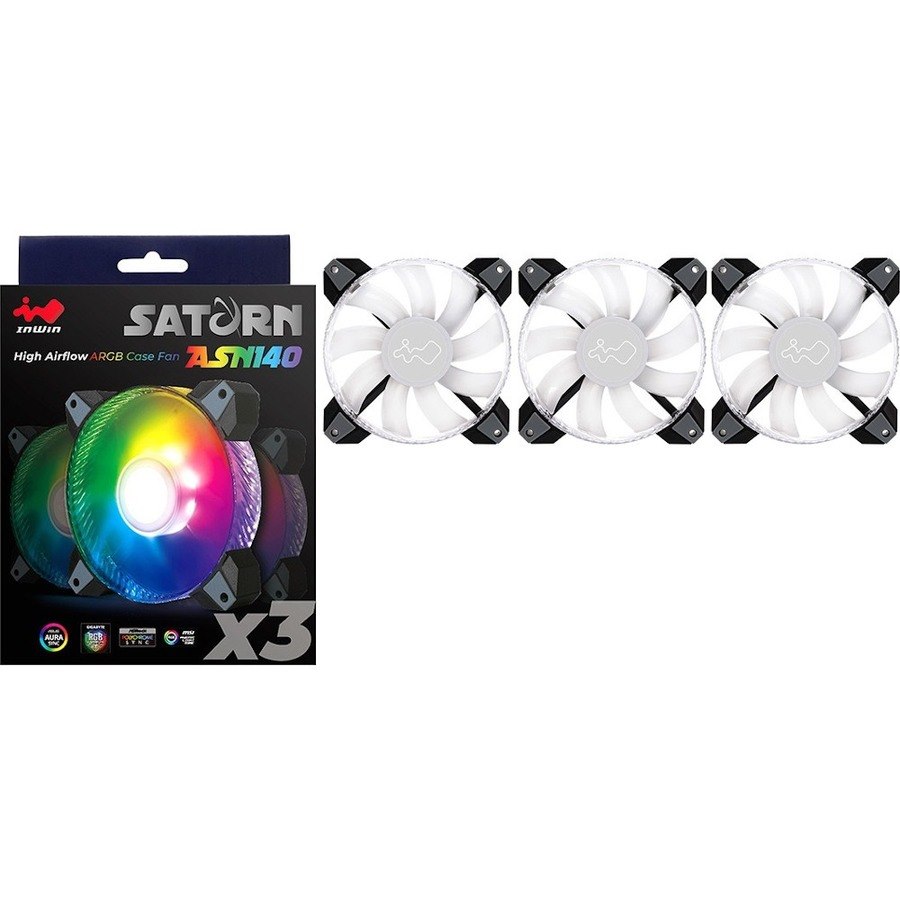

- Saturn ASN140
- ARGB One Click Controller
- 1 x PWM Cable
- 1 x ARGB Cable
- 1 x Main Cable
- 3 x 6-6 Pin Fan Cable
- Application/Usage
- Motherboard
- Environmentally Friendly
- Yes
- Environmental Compliance
- Restriction of Hazardous Substances (RoHS)
- Waste Electrical and Electronic Equipment Directive (WEEE)
- Country of Origin
- China
